Key facts: AC won't turn on
- Thermostats need power, either from batteries or the system's low-voltage wiring [1].
- Most systems have separate breakers for the indoor and outdoor units.
- Condensate float switches shut the system off to prevent water damage.
- Repeatedly tripping breakers point to an electrical fault that needs a professional.
Start here
Check in this order
Most causes are found in these six places.
- 1
Thermostat display
Blank? Replace batteries if it uses them.
- 2
Thermostat settings
Cool mode and a setpoint below room temperature.
- 3
Indoor unit breaker
Air handler or furnace breaker in the panel.
- 4
Outdoor unit breaker
Usually a double breaker in the panel.
- 5
Disconnect box
Near the outdoor unit; make sure it is on.
- 6
Furnace or air handler switch
Looks like a light switch near the unit.
Safety switches
Safety switches that stop the system
Many air handlers have a float switch in the drain pan or on the condensate line. If the drain clogs and water rises, the switch cuts power to stop cooling and prevent a flood. Furnaces and air handlers also have door switches that cut power when the access panel is off. Outdoor units have pressure switches that stop the compressor if pressures go too high or low. If any of these trip, the system will not run until the cause is fixed.
Diagnosis
Clues and causes
| What you see | Likely cause |
|---|---|
| Blank thermostat | Dead batteries, tripped breaker or blown control fuse |
| Thermostat on, nothing runs | Power to air handler, float switch or control board |
| Indoor runs, outdoor silent | Outdoor breaker, disconnect or contactor |
| Breaker trips again | Electrical fault; call |
| Water in the drain pan | Clogged drain tripped the float switch |
After outages
After a power outage or storm
After a power outage or summer storm, systems sometimes do not restart. Many thermostats and units have a short delay after power returns to protect the compressor; wait a few minutes. If the system still will not run, check breakers. Surges during storms can damage control boards, capacitors and transformers, which need a technician.
Thermostats
Thermostat problems in detail

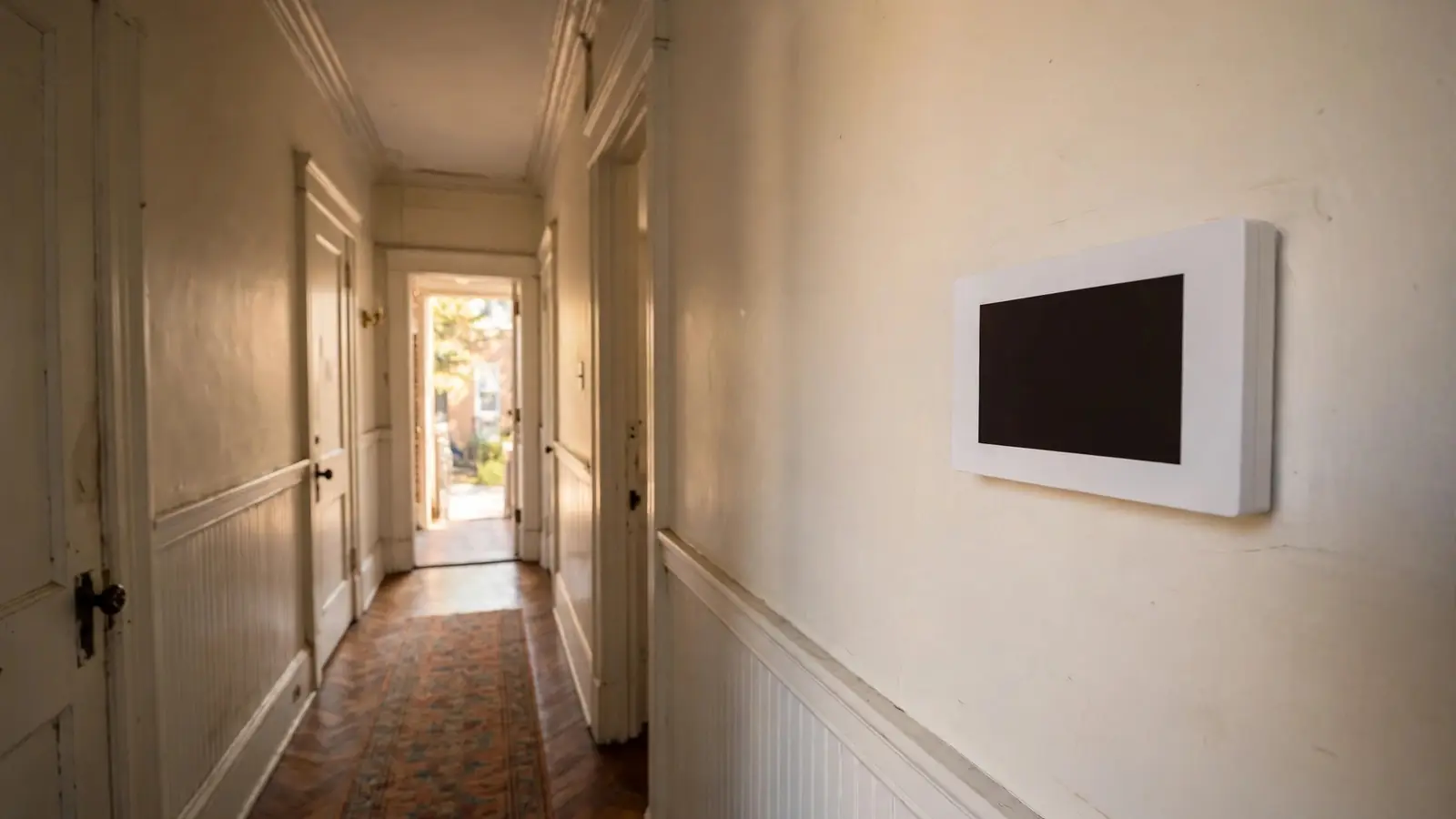

Battery-powered thermostats go blank when batteries die. Wired thermostats rely on a 24-volt transformer in the air handler or furnace; if the transformer fails or a low-voltage fuse on the control board blows, the thermostat goes dark. Loose wires behind the thermostat, a thermostat set to the wrong system type, or a smart thermostat that lost its Wi-Fi schedule can also stop the system. If you recently installed a new thermostat, check the setup for heat pump or conventional systems.
Power
Breakers, disconnects and fuses
The outdoor unit usually has a double-pole breaker in your electrical panel and a disconnect box mounted near the unit, which may contain fuses or a pull-out block. Someone mowing, painting or doing roof work may have pulled the disconnect. If a fuse in the disconnect has blown, it suggests an electrical problem that should be checked by a professional. Do not replace fuses with higher-rated ones.
Float switches
Condensate safety switches
In the drain pan
Rises with water and cuts power.
On the drain line
Senses a backup in the line.
In a secondary pan
Under attic units to protect ceilings.
On condensate pumps
Stops cooling if the pump fails.
Control boards
When the problem is the control board
Air handlers and furnaces have control boards that coordinate the blower, outdoor unit and safety switches. Boards can fail from age, heat, moisture or power surges. A blinking diagnostic light on the board, visible through a small window in some units, can give technicians a starting point. Boards should only be diagnosed and replaced by trained technicians.
Heat waves
If your system shuts off in a heat wave
- 1
Stay cool
Fans, shade, water and the lowest floor.
- 2
Check the basics
Thermostat, breakers and disconnect.
- 3
Look for water
A full pan may have tripped the float switch.
- 4
Phone a technician
Describe what you found.
- 5
Check on others
Older neighbors and relatives are at risk.
Smart thermostats
Smart thermostat issues
Smart thermostats add Wi-Fi, schedules and sensors, but they can also add confusion. Some need a common wire (C-wire) for steady power; without it they may lose power and shut down. Software updates or schedule settings can leave the system off when you expect cooling. Check the app for alerts, confirm the mode and schedule, and make sure the thermostat shows it is calling for cooling. If it is, and nothing runs, the problem is downstream.
Summary
Won't turn on at a glance
| Check | Where |
|---|---|
| Thermostat power and mode | On the wall or in the app |
| Indoor breaker | Electrical panel |
| Outdoor breaker | Electrical panel |
| Disconnect | Next to the outdoor unit |
| Float switch | Drain pan or line at the indoor unit |
| Service switch | Near the air handler or furnace |
Older wiring
Older homes and electrical capacity
In older DC homes, air conditioning was often added to electrical systems never designed for it. Loose connections, undersized wiring or aging panels can cause breakers to trip or connections to fail, stopping the system. If breakers trip repeatedly or you notice warm panels, flickering lights or burning smells, call a licensed electrician as well as an HVAC technician.
Call now
Signs that need a call today
- Burning smellTurn off and call.
- Breaker trips againElectrical fault.
- Water overflowingRisk of damage.
- Sparks or scorched wiringTurn off at the panel and call.
FAQ
Won't turn on questions
Why is my thermostat blank?
Dead batteries, a tripped breaker or a blown low-voltage fuse are common causes.
Can a clogged drain stop my AC?
Yes. A float switch shuts it off to prevent water damage.
How many breakers does my AC have?
Usually at least two: one indoor, one outdoor.
Why won't my AC start after a power outage?
Wait a few minutes for built-in delays; then check breakers.
Can mowing or roof work turn off my AC?
Yes, if someone pulled the outdoor disconnect. Check it.
What is a low-voltage fuse?
A small fuse on the control board that protects thermostat wiring. A blown fuse can blank the thermostat.
Is it safe to replace the disconnect fuse myself?
A blown fuse signals an electrical problem. Have a professional check it.
Why does my smart thermostat keep shutting off?
It may lack a steady power wire or have a schedule or setting stopping cooling.
Can old wiring stop my AC?
Yes. Loose connections and overloaded circuits can trip breakers or fail.
Should I call an electrician or HVAC technician?
Start with an HVAC technician; they will say if electrical work is needed.
Can a dirty filter stop the AC from turning on?
Not usually, though it can cause icing and shutdowns.
